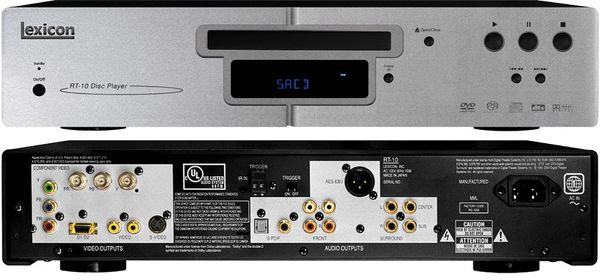

Lecteur universel de DVD Lexicon RT10 - SACD, DVD-Vidéo, DVD-Audio, DVD-R, DVD-RW, CD, CD-R, CD-RW, VCD (v2.0, MPEG 1), S-VCD (IEC), MP-3

Lecteurs DVD

Formats reconnus
DVD-V,DVD-A, DVD-R, DVD-RW, SACD, CD, CD-R, CD-RW, VCD (v2.0, MPEG 1),S-VCD (IEC), MP-3
Audio Outputs

Digital-to-Analog Conversion:
24-bit/192kHz

Frequency Response:
20Hz to 20kHz (±.5dB) -1.0dB at 50kHz,
reference 1kHz (front L/R outputs)

THD + Noise:
0.004% at 1kHz

Dynamic Range:
100dB

Signal-to-Noise Ratio:
100dB

Channel Separation:
100dB

Output Level:
2.0V maximum





Video Outputs


2 component video (1 RCA, 1 BNC),
1 S-video, and 2 composite video (RCA)





Video Performance

Digital-to-Analog Conversion :
12-bit/108MHz
(10-bit/54MHz for A/V Euroconnector)

Bandwidth :
6MHz

Signal-to-Noise Ratio :
75dB (Y output)

Output Level :
1.0V peak-to-peak

Output Impedance :
75&Mac189;





Dimensions and Weight

Height:
3.7 inches (94mm)

Width:
17.3 inches (440mm)

Depth:
12.2 inches (310mm)

Weight:
17.2lbs. (7.8kg)





Other

Trigger Input:
12V DC, detachable screw terminals

IR Input:
3.5mm T/R/S

D1/D2:
14-pin D connector

Power Requirements:
120VAC, 50-60Hz (USA model)
230VAC, 50-60Hz (Export model)

Rack Mounting:
Optional brackets are available for installing either unit in a standard 19" equipment rack

Remote Control:
Hand-held, battery-powered infrared remote control unit





Environment

Operating Temperature:
5° to 35°C

Relative Humidity:
85% maximum without condensation
